618 re-entering a desktop machine: mechanical revolution NX5 desktop gaming computer host unpacking experience

Foreword

The annual purse catastrophe day 618 came, taking advantage of this opportunity to quickly improve the home equipment, prior to the new KINGBLOOD grabbed a host of 6700K+GTX1080 configuration, after the wife installed like it put it down, so that every day Forced use of computer addiction games can not extricate themselves.

The bloody dynasty KINGBLOOD Hero 2-V80 i7-6700K Asus B150M GTX1080 8G Water-cooled 750W Gold 256G SSD Desktop Assembled Computer Gaming Computer UPC7999 Sixth-generation unlocked multiplier i7 6700K with Asus B150M-PLUS motherboard, Cooler One-piece water-cooled Heat dissipation, the video card for the Sotec GTX1080 8G graphics card, equipped with 256G Kingston SSD hard drive, support M.2, no HDD and memory, users need to buy their own, the power of the Han Hao 350W gold power supply, quality can be. This configuration can run current popular games smoothly and efficiently. The machine pre-installed genuine Jingdong direct link to encyclopedia

It is to grab her, just to catch up with 618 and then buy one, this time still want to save time and effort into a brand machine, stroll around to see the mechanical revolution new NX5-V730, the price is 5499 yuan, mainly It's cool to see the computer's angular shape. In addition, there is one more important thing. My good friend is working in the mechanical revolution. I do not have to make appointments and can wait for delivery directly.

Mechanical Revolution (MECHREVO) NX5-V730 Desktop gaming computer host (seventh generation i7-7700 8GDDR4 128GSSD+1T GTX1060 3G alone significantly win10) 5499 yuan Jingdong direct link

The mechanical revolution of this NX5-V730, from the Jingdong page looks like before their main push NX7-400 drop version, remove the two RGB light bar, the power button RGB light and Wifi network card, graphics card drop from the GTX1060 6GB For the GTX1060 3GB, the CPU, memory, and hard disk are also i7 7700 + 8G DDR4 + 128GB SSD + 1TB HDD. The direct price difference between the two is as high as 1,300 yuan. The NX5-V730's price/performance ratio is still quite outstanding.

Arrived out of the box

It didn't wait long enough to finally arrive. The inside and outside of the packing box were very “environmentally friendly”. There was only a simple monochrome printing pattern. The thick shockproof cotton made the whole interior look very empty, and the main body was also covered with a thick layer of foam cloth. .

Accessories included are power cord, HDMI to VGA adapter, manual, warranty card.

The chassis of the mechanical revolution NX5-V730 is a MATX structure. It does not appear as large as a JD page. The diamond cutting lines appear to be relatively smooth. The flame effect printed in the lower middle is also echoed by the red edges on both sides.

There are a total of four USB ports on the front, two of which are USB 3.0, and the headset and microphone interfaces are also in the same area.

Cool shark fin vents above

CORE i7 + NVIDIA stickers for noble status

The interface on the back of the host is relatively rich, and old interfaces such as PS2 and COM still remain. In addition, the integrated VGA interface on the motherboard is blocked. Avoid white plug the monitor on the integrated graphics, resulting in reduced display performance.

Internal dismantling

Since there are people there are no need to worry about future warranty issues, boldly split! You can see that the internal alignment is very general and not too cluttered. Two wasted places in the upper right were wasted.

The M.2 interface is located between the CPU and the PCI-E. It should be a 32GB/s CPU direct connection. The 128GB SSD is covered by a sticker and it is impossible to see the brand.

HDD is a 1TB blue disk for Western Digital, and its performance is quite satisfactory.

The memory is Kingston's 8GB DDR4 2400MHz.

The video card is a very small-sized Sotec GTX1060 3GB, which is known as the IQ test card.

The power supply is a 300W 80Plus bronze power supply that will be sufficient for the entire Chinese OEM.

Hardware identification

The figure above shows the identification information in the system properties. The pre-installed version is Win10 Home Edition. In addition, the customer service phone and office hours of the mechanical revolution are reflected.

The above figure shows the CPU-Z identification information, Intel i7 7700 + H110 + DDR4-2400.

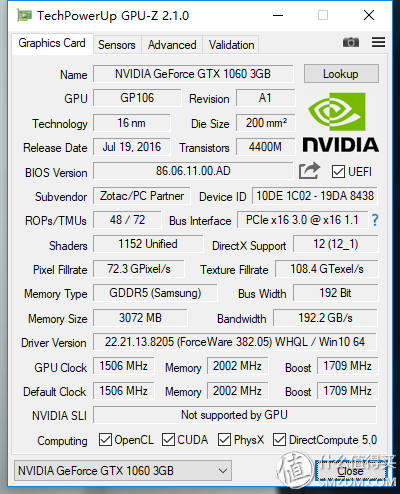

The figure above shows the GPU-Z identification information, Sotec GTX1060 3GB.

The figure above shows the identification information of SSD-Z. The SSD of M.2 interface is produced by Kingston.

Performance Testing

Master Lu scores over 250,000

ADIA64 memory reads as 18255MB/s

AS SSD reads 368MB/s, writes 234MB/s

3DMARK Time Spy scored 3928

to sum up

Advantages: Great brand after-sales guarantee, accessories rely on the spectrum

Disadvantages: The power is slightly shabby and the cable is not beautiful

Next notice

High-energy warning: After the last transformation, the network is still a little unstable, so it replaced the NETGEAR R8500 with Apple TV 4 and Apple AirPort Express, which are not used at home, and also upgraded the download treasure to a Pro version. , how to use the specific experience, please look forward to the near-term completion of the "small villa of non-mainstream cloth! The third chapter in the series of perfect home networking environment.
