For most ordinary users, they must have heard of electric pens among common tools used by electricians, and may have heard of multimeters, but almost never have heard of shake meters. But in fact, shaking the meter is the most convenient and quickest tool to use and find faults for home circuits and common faults in home circuits. Below we will briefly introduce the use of the shaker, and the application of the shaker in the home circuit.
The simple use of the table shake is divided into three steps:The first step, table selection

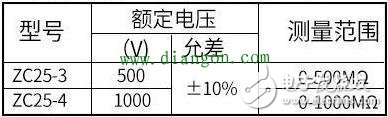

If the rated voltage of the line to be tested is below 500V, choose a 500V shaker. If the rated voltage is above 500V, choose 1000~2500V to shake the meter. For general household use, you can choose a 500V shake meter-this is a meter selection, not a range selection like a multimeter, so choose it when you buy it.
The second step, self-check
Before putting it into use, test the shaker itself to ensure that it can work normally. The test is divided into two steps: first disconnection test-connect the test leads, separate the tips of the two test leads, turn the handle, and check the indication. Under normal circumstances, the pointer should be on the far right side of the dial, pointing to "∞". Perform short circuit test again-clamp the nibs of the two test leads together, turn the handle, and check the indication. Under normal circumstances, the pointer should be on the far left of the dial, pointing to "0".
The third step, measurement
Clamp the test pen of the shaker on the two ends of the object to be measured, shake the handle clockwise, and slowly accelerate until the speed is 2r/s (two revolutions per second) and stabilizes at this speed. After the reading is stable, do not stop the handle and start the reading.
After the measurement is completed, release the hand turning the handle and let it stop automatically. When the handle of diangon.com has not stopped, remove the black test lead and touch the metal tip of the red test lead with the black test lead, and then remove the red test lead.
Note one thing: no power supply and load are allowed in the circuit during measurement.
The use of shaking table in home circuitThe home circuit is relatively simple, so the use of the shaker is not complicated. Using the shaking table, you can easily find two major problems: short circuit situation and location; leakage situation and location.
Leakage detection
There is a leakage in the circuit, and the leakage circuit breaker frequently trips. At this time, the most troublesome thing is not how to repair, but where the electricity is leaking and which wire to repair. With the shaking table, everything becomes uncomplicated.
The method is: one test lead clamps the wire to be tested (zero wire or live line), another test lead clamps the ground wire, and starts to shake the handle. If the reading at this time is less than 0.5MΩ, it proves that there is leakage in the line-when measuring, it is recommended to remove all the wire connectors and measure one by one to determine the specific location of the leakage.
Short circuit detection
Clamp the two test leads to the zero line and the live line respectively, and start to turn the handle. If the reading is 0 at this time, it proves that there is a short-circuit point in the section of the line-when measuring, you also need to remove the connector and measure in sections.
